Query 2: Fleet Summary

Fleet-wide overview combining Neo4j graph metrics with Delta sensor analytics in a single SQL statement. No Spark Connector needed, using pure SQL federation via UC JDBC.

Federation Method: remote_query() (UC JDBC) with CROSS JOINs

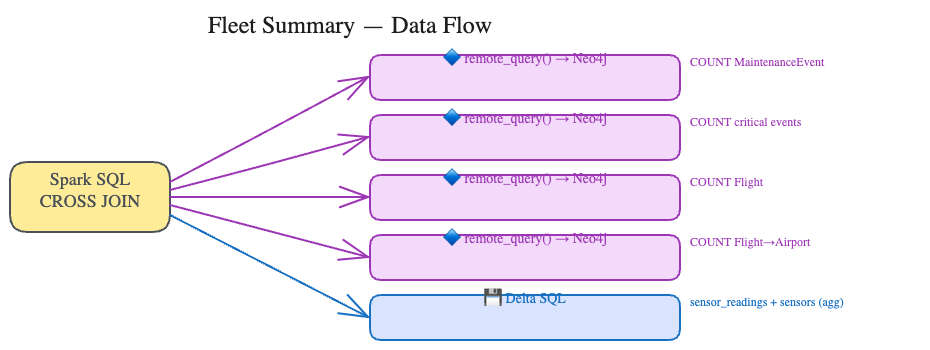

Data Flow

SQL Query

SELECT
    neo4j.total_maintenance_events,
    neo4j.critical_events,
    neo4j.total_flights,
    neo4j.flight_airport_connections,
    ROUND(sensor.avg_egt, 1) AS avg_egt_celsius,
    ROUND(sensor.avg_vibration, 4) AS avg_vibration_ips,
    ROUND(sensor.avg_fuel_flow, 2) AS avg_fuel_flow_kgs,
    ROUND(sensor.avg_n1_speed, 0) AS avg_n1_speed_rpm,
    sensor.total_readings
FROM (
    SELECT
        maint.cnt AS total_maintenance_events,
        crit.cnt AS critical_events,
        flights.cnt AS total_flights,
        deps.cnt AS flight_airport_connections
    FROM
        remote_query('neo4j_uc_connection',
            query => 'SELECT COUNT(*) AS cnt FROM MaintenanceEvent') AS maint
    CROSS JOIN
        remote_query('neo4j_uc_connection',
            query => 'SELECT COUNT(*) AS cnt
                      FROM MaintenanceEvent
                      WHERE severity = ''CRITICAL''') AS crit
    CROSS JOIN
        remote_query('neo4j_uc_connection',
            query => 'SELECT COUNT(*) AS cnt FROM Flight') AS flights
    CROSS JOIN
        remote_query('neo4j_uc_connection',
            query => 'SELECT COUNT(*) AS cnt
                      FROM Flight f
                      NATURAL JOIN DEPARTS_FROM r
                      NATURAL JOIN Airport a') AS deps
) neo4j
CROSS JOIN (
    SELECT
        AVG(CASE WHEN sen.type = 'EGT' THEN r.value END) AS avg_egt,
        AVG(CASE WHEN sen.type = 'Vibration' THEN r.value END) AS avg_vibration,
        AVG(CASE WHEN sen.type = 'FuelFlow' THEN r.value END) AS avg_fuel_flow,
        AVG(CASE WHEN sen.type = 'N1Speed' THEN r.value END) AS avg_n1_speed,
        COUNT(*) AS total_readings
    FROM sensor_readings r
    JOIN sensors sen ON r.sensor_id = sen.`:ID(Sensor)`
) sensor

What This Query Does

Neo4j side (4 remote_query() calls): Counts maintenance events (total + critical), flights, and flight→airport graph traversals
Delta side (1 subquery): Computes fleet-wide sensor averages across all 345K+ readings by sensor type
CROSS JOIN: Combines the single-row results from both sides into one unified fleet summary

Actual Output (Databricks Runtime 17.3 LTS)

The following output was captured from a live Databricks cluster running against Neo4j Aura and Delta lakehouse tables:

Fleet Summary: Neo4j Graph Metrics + Delta Sensor Analytics
Neo4j: remote_query() via UC JDBC | Delta: sensor_readings + sensors
================================================================================
+------------------------+---------------+-------------+--------------------------+---------------+-----------------+-----------------+----------------+--------------+
|total_maintenance_events|critical_events|total_flights|flight_airport_connections|avg_egt_celsius|avg_vibration_ips|avg_fuel_flow_kgs|avg_n1_speed_rpm|total_readings|
+------------------------+---------------+-------------+--------------------------+---------------+-----------------+-----------------+----------------+--------------+
|300                     |0              |800          |800                       |671.6          |0.2659           |1.39             |4768.0          |345600        |
+------------------------+---------------+-------------+--------------------------+---------------+-----------------+-----------------+----------------+--------------+

Key Pattern

remote_query() returns a single-row table per call, making CROSS JOINs natural for combining multiple aggregate metrics. This avoids the GROUP BY limitation of UC JDBC while keeping the query entirely in SQL.
